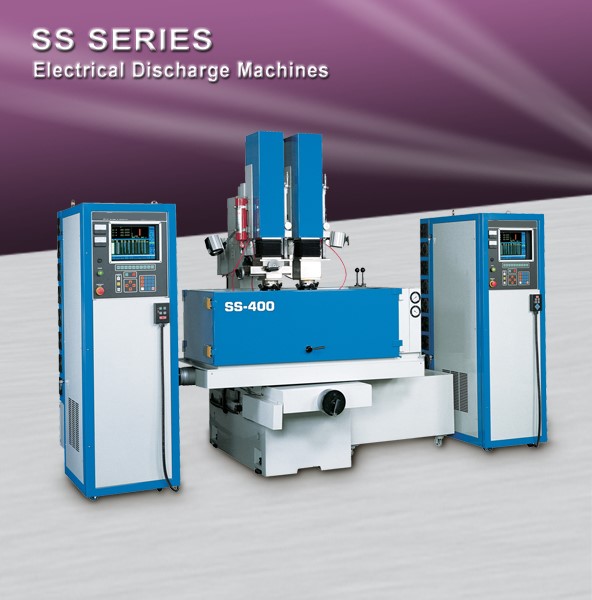

● Shown is a twin Z axis machine for the Molding industry.



At LIKEST, our professional R&D team provides comprehensive technical support including mechanical, electrical, electronic software and design.
Apart from the standard range of E.D.M. equipment we design and build machines to customers individual requirements, machines are built for a large range of uses such as automotive, aerospace, mold making and for machining special materials. LIKEST builds special types such as multiple X, Y, Z axis machines up to 4500mm (X axis travels).
We welcome inquiry for any type of special purpose machine.
Model
Work Tank
Work Table
 Main Travel X Y Z-Axes
Standard Output Current
Machine Net Weight
SS-400
1050 x 630 x450 mm
650 x 350 mm

400 x 300 x180 mm (+250 Auto) / 350(Optional)
75
1800
SS-500
1200 x 700 x 500 mm
800 x 400 mm

500 x 400 x180 mm (+250 Auto) / 350(Optional)
75
2300
SS-700
1500 x 1020 x 650 mm
1000 x 600 mm

700 x 500 x 400 / 600 mm (Optional)
100
5500
SS-1000
1845 x 1100 x 650 mm
1200 x 800 mm

1000 x 600 x 400 / 600 mm (Optional))
100
7000
SS-1300
2080 x 1270 x 700 mm
1400 x 900 mm

1300 x 700 x 600 mm (Optional)
150
8400
SS-2000
2900 x 1500 x 700 mm
2000 x 1000 mm

2000 x 1000 x 600 / 760 mm (Optional)
150
12300
SS-2100
2900 x 1500 x 700 mm
2000 x 1000 mm

2100 x 1000 x 600 / 760 mm (Optional)
150
13500
SS-2500
3400 x 1555 x 700 mm
2500 x 1000 mm

2500 x 1000 x 600 / 760 mm (Optional)
150
18200
SS-3000 Twin head


3000 x 1000 x 760 / 1000 mm (Optional)
150
20000
SS-3700 Twin hea
Upon customer's request

3700 x 1200 x 760 / 1000 mm (Optional)
150
25000
SS-4500 Twin head


4500 x 1500 x 760 / 1000 mm (Optional)
150
30000
