● Rugged Meehanite casting.
● "V" Block tool holder.
● Mitutoyo or Givi Linear Scales.
● Oil lubricator.
● Worklight.
● Vacuum Flushing
● Pulse Flushing.


FEATURES

●Negative polarity machining.
●Reverse machining function (optional).
●Automatic edge search on Z-axis.
●Manual high / low speed change.
●Special circuit for deep hole machining.
●Extra fine machining.
●Constant power discharge. Servo mode selection.
●Fast jump function (optional).
●Special circuit for machining super hard material (optional).
●Arc sensitivity adjustment.
●Anti arc timer.
●Superior precision LED display.
●Fire detection and machine stops.
●Digital display on Z-axis position.
●Anti arc and low wear circuitry.
●Stabilizing circuit for electrodes with large surface areas.
●Special circuit for graphite electrode machining.
●Oil level sensor.
●K gold plated PCB provides moisture and rust resistance.
●X,Y-axis ballscrews on models over SM-500.
Model
Work Tank
Work Table
 Main Travel X Y Z-Axes
Standard Output Current
Machine Net Weight
SM-400
1050 x 630 x450 mm
650 x 350 mm

400 x 300 x180 mm (+250 Auto) / 350(Optional)
75
1800

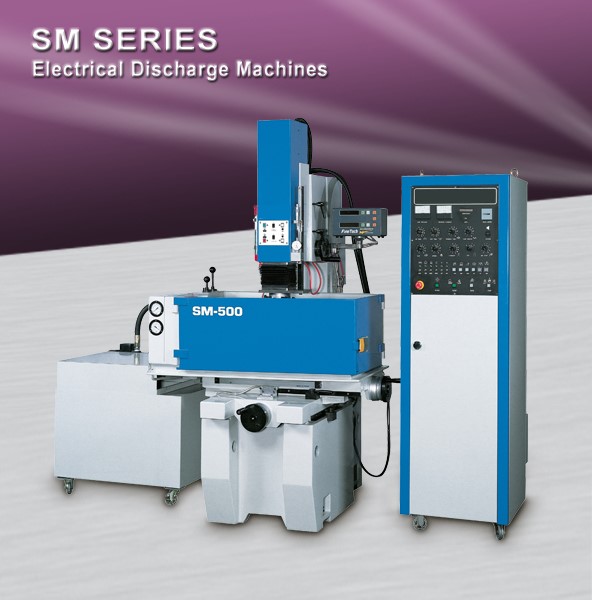

SM-500
1200 x 700 x 500 mm
800 x 400 mm

500 x 400 x180 mm (+250 Auto) / 350(Optional)
75
2300
SM-700
1500 x 1020 x 650 mm
1000 x 600 mm

700 x 500 x 400 / 600 mm (Optional)
100
5500
SM-1000
1845 x 1100 x 650 mm
1200 x 800 mm

1000 x 600 x 400 / 600 mm (Optional))
100
7000
SM-1300
2080 x 1270 x 700 mm
1400 x 900 mm

1300 x 700 x 600 mm (Optional)
150
8400
SM-2000
2900 x 1500 x 700 mm
2000 x 1000 mm

2000 x 1000 x 600 / 760 mm (Optional)
150
12300
SM-2100
2900 x 1500 x 700 mm
2000 x 1000 mm

2100 x 1000 x 600 / 760 mm (Optional)
150
13500
SM-2500
3400 x 1555 x 700 mm
2500 x 1000 mm

2500 x 1000 x 600 / 760 mm (Optional)
150
18200
SM-3000 Twin head


3000 x 1000 x 760 / 1000 mm (Optional)
150
20000
SM-3700 Twin hea
Upon customer's request

3700 x 1200 x 760 / 1000 mm (Optional)
150
25000
SM-4500 Twin head


4500 x 1500 x 760 / 1000 mm (Optional)
150
30000
