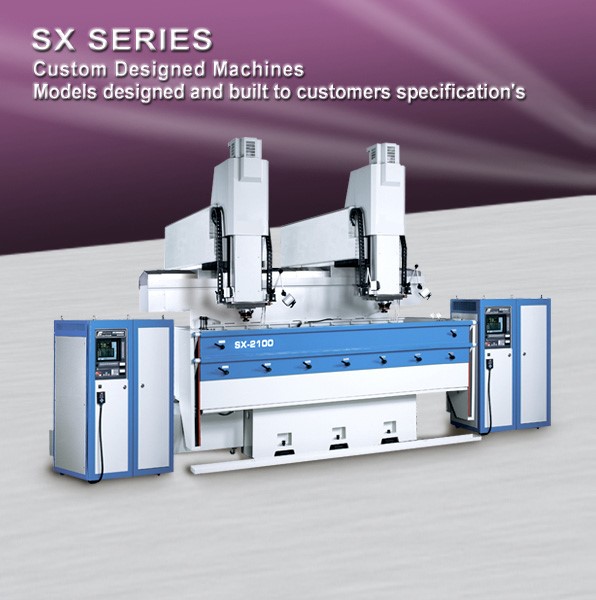

This series is authorized to manufacture by Australian customer. The double ram E.D.M. provides 4500mm travel on X-axis. The floor Model features easy access to table. Equipped with dual Heidenhain-416/ 300A power supply, ATC with 8 tools, each side C-axis on both rams.
SX 4500 T Specifications
●Worktable 4500mm x 1270mm.
●X axis travel 3000mm each.
●Y axis travel 1000mm each.
●Z axis travel 900mm each.
●Open height 1500mm each.
●Distance between Ram centers, MAX 4500mm MIN 1200mm.
●Each ram can pass over center line with collision protection.
●Work tank 5000 x 1500 x 1000.
●Floor to worktable 1000mm.
●Worktable Capacity 30,000kg.
●Power Supply
2 x 300 amp (Peak Current)
2 x Heidenhain TNC 416 Controls.
Model
Work Tank
Work Table
 Main Travel X Y Z-Axes
Standard Output Current
Machine Net Weight
SX-400
1050 x 630 x450 mm
650 x 350 mm

400 x 300 x180 mm (+250 Auto) / 350(Optional)
75
1800
SX-500
1200 x 700 x 500 mm
800 x 400 mm

500 x 400 x180 mm (+250 Auto) / 350(Optional)
75
2300
SX-700
1500 x 1020 x 650 mm
1000 x 600 mm

700 x 500 x 400 / 600 mm (Optional)
100
5500
SX-1000
1845 x 1100 x 650 mm
1200 x 800 mm

1000 x 600 x 400 / 600 mm (Optional))
100
7000
SX-1300
2080 x 1270 x 700 mm
1400 x 900 mm

1300 x 700 x 600 mm (Optional)
150
8400
SX-2000
2900 x 1500 x 700 mm
2000 x 1000 mm

2000 x 1000 x 600 / 760 mm (Optional)
150
12300
SX-2100
2900 x 1500 x 700 mm
2000 x 1000 mm

2100 x 1000 x 600 / 760 mm (Optional)
150
13500
SX-2500
3400 x 1555 x 700 mm
2500 x 1000 mm

2500 x 1000 x 600 / 760 mm (Optional)
150
18200
SX-3000 Twin head


3000 x 1000 x 760 / 1000 mm (Optional)
150
20000
SX-3700 Twin head
Upon customer's request

3700 x 1200 x 760 / 1000 mm (Optional)
150
25000
SX-4500 Twin head


4500 x 1500 x 760 / 1000 mm (Optional)
150
30000
