● Rugged Meehanite casting.
● C3 class Double Nut Ballscrews.
● Deutsche Star or THK Precision grade Linear Guideway System on all axis.
● Closed Loop System.
● Heidenhain LS series Linear Scales on all axis.
● HR 330 Electronic Handwheel.
● RS 232 port.
● Auto lubrication to all axis.


FEATURES

●Heidenhain TNC 416 control.
●Program path movement: Straight line, Chamfer, Circular arc, Circle centre, Circle radius tangentially connecting circular arc, Corner rounding.
●Conversational programming.
●Simultaneous 3 axis control.
●Optional C-axis and auto tool changer.
●Cartesion and polar coordinate system.
●Relative and absolute positioning.
●Graphic display: Plan view, three plane view and 3D view.
●Axis movement by directional control keys electronic handwheel and M.D.I.
●Subprogram call.
●Data interface, RS232, LSV-2 protocol.
●Comprehensive user cycles.
●Mathematical functions＋ , - , × ,÷ ,Trig functions (Sine, Cosine, Tangent, Arc, Tangent) square roots ( a )and root sum of squares ( a2+b2 ).
●Electrode compensation, automatic hole centre.
●Co-ordinate.
●Multiple reference points, Maximum of 20mm required to find machine position.
●Automatic calculation for workpiece angle.
●Background programming.
●Special graphite electrode circuit.
●Built in erosion tables.
●Built in user cycles.
●CE compliant versions.
●Anti arc and low wear circuitry.
●Stabilizing circuit for electrodes with large surface areas.
●Special circuit for deep hole machining.
OPTIONS
●"C" Axis 3R or Hirschmann.
●Auto Tool changer 3R, Hirschmann or custom design.
●Hydraulic worktank door on models 700 and above.
●Oil cooler.
Model
Work Tank
Work Table
 Main Travel X Y Z-Axes
Standard Output Current
Machine Net Weight
SH-400
1050 x 630 x450 mm
650 x 350 mm

400 x 300 x180 mm (+250 Auto) / 350(Optional)
75
1800
SH-500
1200 x 700 x 500 mm
800 x 400 mm

500 x 400 x180 mm (+250 Auto) / 350(Optional)
75
2300
SH-700
1500 x 1020 x 650 mm
1000 x 600 mm

700 x 500 x 400 / 600 mm (Optional)
100
5500
SH-1000
1845 x 1100 x 650 mm
1200 x 800 mm

1000 x 600 x 400 / 600 mm (Optional))
100
7000
SH-1300
2080 x 1270 x 700 mm
1400 x 900 mm

1300 x 700 x 600 mm (Optional)
150
8400
SH-2000
2900 x 1500 x 700 mm
2000 x 1000 mm

2000 x 1000 x 600 / 760 mm (Optional)
150
12300
SH-2100
2900 x 1500 x 700 mm
2000 x 1000 mm

2100 x 1000 x 600 / 760 mm (Optional)
150
13500

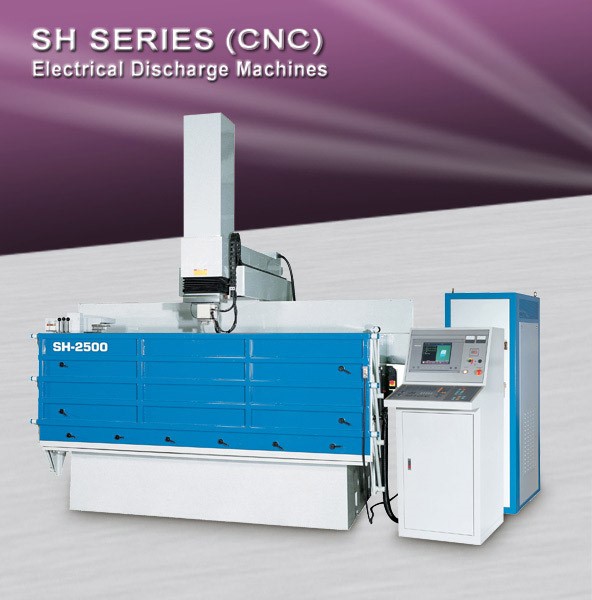

SH-2500
3400 x 1555 x 700 mm
2500 x 1000 mm

2500 x 1000 x 600 / 760 mm (Optional)
150
18200
SH-3000 Twin head


3000 x 1000 x 760 / 1000 mm (Optional)
150
20000
SH-3700 Twin hea
Upon customer's request

3700 x 1200 x 760 / 1000 mm (Optional)
150
25000
SH-4500 Twin head


4500 x 1500 x 760 / 1000 mm (Optional)
150
30000
