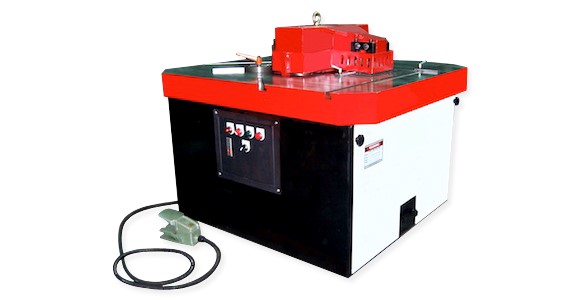

| Hydraulic Notching Machine/Hydraulic Corner Shear/Hydraulic Angle Notcher |
|
|
| |
|
|
 |
 |
NEN |
 |
model\spec. |
Capacity |
Edge notching |
Stroke |
motor |
Table size |
Approx. N.W./G.W. |
Approx packing sizeL*W*H
|
thickness*width |
CFN-4.0/220 |
4.0mm |
220*220
mm |
100*75
mm |
38mm |
3HP |
1000*845
mm |
840/900 kgs |
1000*845*1040
mm |
CFN-6.5/220 |
6.5mm |
1080/1160 kgs |
CFN-4.0/250 |
4.0mm |
250*250
mm |
1245*1110
mm |
1100/1180 kgs |
1245*1110*1090
mm |
CFN-6.5/250 |
6.5mm |
5HP |
1200/1280 kgs |
| MACHINE CHRACTERISTIC : |
 Double head design: easy or corner notching and edge notching and variouse shape cutting
with various dies changeable. |
| High precision: fixed sizing device is adopted for simple construction and high accuracy. |
| Safety driven by hydraulic power for proper rotation and safe operation |
| Easy operation: By centralized front control. |
| Single, continuous or inching operation |
| Oilless bearings for both cylinders slide guides. |
|
| STANDARD EQUIPMENT： |
| Corner shearing blade*1 set. |
| Square edge notching die*1 set. |
| Hand tool box*1 set. |
| Safety finger guards. |
| Hydraulic oil |
| 1 Foot Pedal |
|
| OPTIONAL EQUIPMENT：For CFN-4.0/250 & CFN-6.5/250 only |
| Hole punching die sets Max: 24/3.2mm, 50.8/1.6mm |
| Square hole punching die sets Max: 19/3.2mm, 35/1.6mm |
| Other design punching die sets |
|
|
|
 |
 |
|
