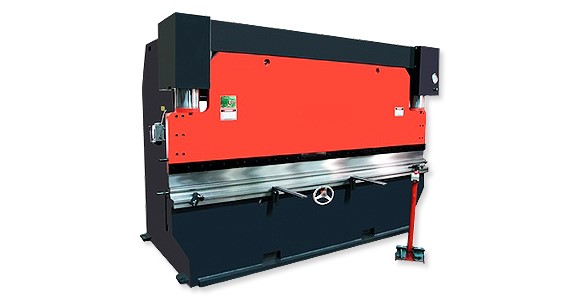

CFB |
 |
Model |
Capacity T×W mm |
Max
Load
tons
|
Housing
mm
|
Ram
Stroke
mm
|
Daylight
mm
|
Table
L×W mm |
Cylinders |
Motor
HP
|
Throat depth mm |
G.W. Approx. |
Case size L×W×H |
CFB-4014 |
3.2×1220 |
40 |
1000 |
150 |
300 |
1400 |
150 |
2 |
3 |
205 |
2000 |
1900×1200×2190 |
CFB-4020 |
2×1830 |
40 |
1850 |
150 |
300 |
2000 |
150 |
2 |
3 |
205 |
2600 |
2400×1200×2190 |
CFB-6020 |
3.5×1830 |
60 |
1850 |
150 |
300 |
2000 |
150 |
2 |
5 |
205 |
3500 |
2400×1300×2190 |
CFB-6025 |
3×2440 |
60 |
2100 |
150 |
300 |
2500 |
150 |
2 |
5 |
205 |
4500 |
2620×1400×2190 |
CFB-6032 |
2×3050 |
60 |
2500 |
150 |
300 |
3200 |
150 |
2 |
5 |
205 |
4800 |
3600×1400×2190 |
CFB-8020 |
4.5×1830 |
80 |
1850 |
150 |
300 |
2000 |
150 |
2 |
7.5 |
255 |
4500 |
2400×1400×2190 |
CFB-8025 |
3.2×2440 |
80 |
2100 |
150 |
300 |
2500 |
150 |
2 |
7.5 |
255 |
4800 |
2600×1500×2190 |
CFB-8032 |
2.5×3050 |
80 |
2500 |
150 |
300 |
3200 |
150 |
2 |
7.5 |
255 |
5500 |
3600×1500×2190 |
CFB-11020 |
6×1830 |
110 |
1850 |
200 |
350 |
2000 |
200 |
2 |
10 |
255 |
5500 |
2400×1500×2190 |
CFB-11025 |
4.5×2440 |
110 |
2100 |
200 |
350 |
2500 |
200 |
2 |
10 |
255 |
6000 |
2620×1500×2190 |
CFB-11032 |
3.2×3050 |
110 |
2500 |
200 |
350 |
3200 |
200 |
2 |
10 |
255 |
7000 |
3600×1700×2200 |
CFB-11038 |
2.5×3660 |
110 |
3200 |
200 |
350 |
3800 |
200 |
2 |
10 |
255 |
8500 |
4200×1700×2200 |
CFB-15025 |
6×2440 |
150 |
2100 |
200 |
400 |
2500 |
200 |
2 |
10 |
305 |
7800 |
2600×1850×2300 |
CFB-15032 |
5×3050 |
150 |
2500 |
200 |
400 |
3200 |
200 |
2 |
10 |
305 |
9600 |
3600×1850×2300 |
CFB-15038 |
4.5×3660 |
150 |
3200 |
200 |
400 |
3800 |
200 |
2 |
10 |
305 |
11500 |
4200×1900×2300 |
CFB-20025 |
6.5×2440 |
200 |
2100 |
200 |
400 |
2500 |
200 |
2 |
15 |
305 |
9800 |
2600×1950×2300 |
CFB-20032 |
7×3050 |
200 |
2500 |
200 |
400 |
3200 |
200 |
2 |
15 |
305 |
11700 |
3600×1950×2650 |
CFB-20038 |
6×3660 |
200 |
3200 |
200 |
400 |
3800 |
200 |
2 |
15 |
305 |
13000 |
4200×2000×2650 |
CFB-30025 |
12×2440 |
300 |
2100 |
200 |
450 |
2500 |
200 |
2 |
20 |
305 |
15300 |
2600×1950×2790 |
CFB-30032 |
10×3050 |
300 |
2500 |
200 |
450 |
3200 |
200 |
2 |
20 |
305 |
17000 |
3600×1950×2790 |
CFB-30038 |
9×3660 |
300 |
3200 |
200 |
450 |
3800 |
200 |
2 |
20 |
305 |
20000 |
4200×2200×2790 |
CFB-10062 |
2×6200 |
100 |
5200 |
200 |
450 |
6200 |
200 |
2 |
20 |
305 |
12000 |
6200×1800×2300 |
CFB-36062 |
6.5×6200 |
360 |
5200 |
250 |
500 |
6200 |
200 |
2 |
30 |
355 |
33000 |
6700×2350×5000 |
CFB-45051 |
10×5100 |
450 |
4000 |
300 |
550 |
5100 |
260 |
2 |
40 |
355 |
34000 |
5600×2400×4800 |
CFB-45062 |
8×6200 |
450 |
5200 |
300 |
550 |
6200 |
260 |
2 |
100 |
355 |
40000 |
4800×2450×5400 |
| Standard Equipment: |
 Front Supports |
| Front Manual Back Gauge (W/ analog readout) |
| Foot Panel w/ E-stop |
| Top Tool & Bottom Die |
| Die Block Clamps |
| Die Lift Chain |
| Manual Lubricator |
| Leveling Screw & Blocks |
| Tool Box & Tool |
|
| Optional Equipment： |
| Special or Sectionalized Tooling |
| Power Back Gauge |
| NC Back Gauge |
| NC Depth Stop Control |
|
|
|
 |
 |
|
