MODEL NO.
CFR-301
CFR-302
CFR-303
CFR-304
CFR-305
01.Flat bar
40*6@ψ300 20*5@ψ180
50*8@ψ400 20*5@ψ200
60*10@ψ450 25*5@ψ220
70*12@ψ600 25*5@ψ240
80*18@ψ800 25*5@ψ285
02.Flat bar
50*12@ψ200
60*18@ψ400
80*20@ψ400
100*25@ψ550
120*25@ψ650
03.Square bar
20*20@ψ320
28*28@ψ320
32*32@ψ450
40*40@ψ650
45*45@ψ500
04.Angle out
35*5@ψ350 20*3@ψ300
50*6@ψ600 20*3@ψ300
60*6@ψ600 30*4@ψ350
70*7@ψ750 30*4@ψ350
80*8@ψ800 40*4@ψ400
05.Angle in
30*4@ψ400(★) 20*3@ψ300(★)
40*5@ψ400 20*3@ψ350
50*5@ψ500 30*4@ψ350
60*6@ψ600 30*4@ψ420
70*7@ψ750 40*4@ψ550
06.T-bar out
35*35*4@ψ350
50*50*6@ψ500
60*60*7@ψ600
70*70*8@ψ700
80*80*9@ψ800
07.T-bar in
30*30*4@ψ350
40*40*5@ψ550
50*50*6@ψ650
60*60*7@ψ750
70*70*8@ψ850
08.Channel out
40*20@ψ300
60*30@ψ500
80*45@ψ500
100*50@ψ750
120*55@ψ800
09.Channel in
40*20@ψ600
50*25@ψ500
70*40@ψ600
80*45@ψ800
100*50@ψ900
10.Round Bar
ψ25@ψ270
ψ30@ψ320
ψ40@ψ450
ψ45@ψ500
ψ55@ψ650
11.Round Pipe
40*1.5@ψ400 12*1@ψ180
50*2@ψ600 16*1@ψ200
60.3*2.9@ψ800 20*1.5@ψ240
76*2.9@ψ1200 25.2@ψ270
101*2.3@2000 25*2@ψ320
12.Round Pipe
33.7*2.3@ψ450
42.4*3.2@ψ450
48.3*4@ψ550
60.3*4.5@ψ650
76*4.5@ψ800
13.Flat Tube
30*20*2(☆)
40*20*2(☆)
60*30*2.5(☆)
75*30*3(☆)
80*40*4(☆)
14.Square Pipe
25*2(☆)
40*2(☆)
50*3(☆)
60*3(☆)
70*3.5(☆)
15.T-bar up
40*40*5@ψ400
90*90*10@ψ900
16.I-beam
N/A
80*42@ψ550
120*58@ψ850
Motor(HP)
2HP
5HP
7½HP
Shaft(mm)
35
40
50
60
70
Roll(mm)
135
145
180
205
245
N.W./G.W.(Apr.) kgs
400/450
500/650
820/960
1080/1260
1480/1600
(★) Special tooling required. (☆) Special roll required for thin-wall, square & rectangular hollow sections.
Section%20Bending%20Machine/NER_301.jpg)

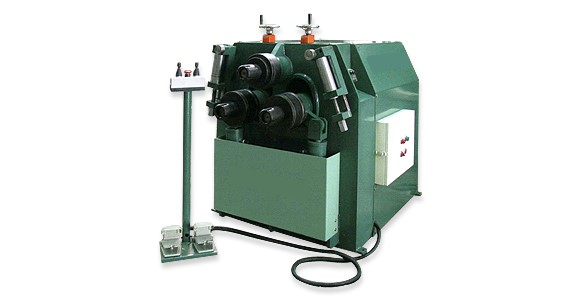

Section%20Bending%20Machine/NER_303.jpg)

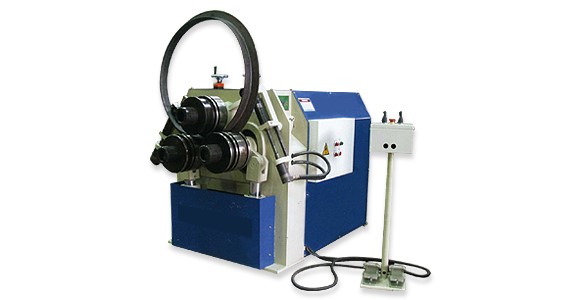

Section%20Bending%20Machine/NER_304.jpg)

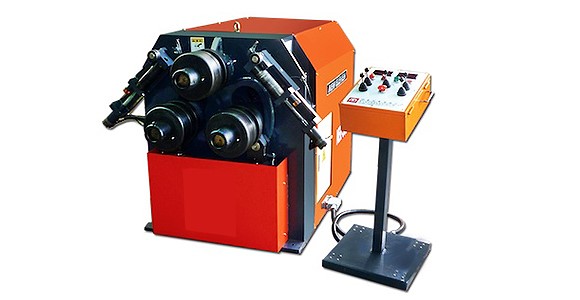

Section%20Bending%20Machine/NER_305.jpg)
Hardened rolls. Shafts are also hardened & grounded.
