Home > Products > Guillotine Shear

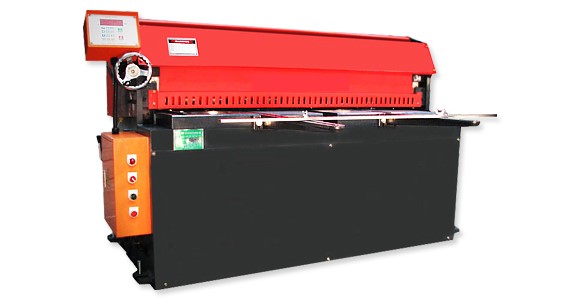

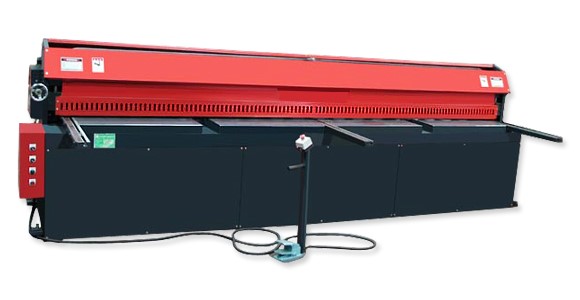

Hydraulic Guillotine Shear Machine

CFG

model\spec.

Capacity

Shear
angle

back/front gauge

Stroke/min.

motor

Approx. N.W./G.W.

Approx packing size
L*W*H

thickness*width

CFG-0425

2.5mm

1320mm

1°30’

685mm/
660mm

5HP

1.05/1.2 Tons

1970*1060*1500mm

CFG-0525

1530mm

1.3/1.45 Tons

2180*1060*1500mm

CFG-0625

2000mm

1.42/1.6 Tons

2650*1060*1500mm

CFG-0825

2500mm

2.1/2.5 Tons

3150*1060*1500mm

CFG-1025

3100mm

2.65/3 Tons

3750*1060*1500mm

CFG-0435

3.5mm

1320mm

7.5HP

1.25/1.4 Tons

1970*1060*1550mm

CFG-0535

1530mm

1.4/1.6 Tons

2180*1060*1550mm

CFG-0635

2000mm

1.6/1.82 Tons

2650*1060*1550mm

CFG-0835

2500mm

2.3/2.65 Tons

3150*1060*1550mm

CFG-1035

3100mm

2.8/3.16 Tons

3750*1060*1550mm

CFG-0450

5.0mm

1320mm

10HP

1.5/1.8 Tons

2000*1060*1600mm

CFG-0550

1530mm

2/2.3 Tons

2180*1060*1600mm

CFG-0650

2000mm

2.85/3.1 Tons

2650*1060*1600mm

CFG-0850

2500mm

3.3/3.6 Tons

3150*1060*1600mm

CFG-1050

3100mm

3.8/4.1 Tons

3750*1060*1600mm

CFG-0465

6.5mm

1320mm

15HP

2/2.3 Tons

2000*1060*1650mm

CFG-0565

1530mm

2.5/2.7 Tons

2180*1060*1650mm

CFG-0665

2000mm

3.3/3.6 Tons

2650*1060*1650mm

CFG-0865

2500mm

4.3/4.6 Tons

3150*1060*1650mm

CFG-1065

3100mm

4.7/5.2 Tons

3750*1060*1650mm

STANDARD EQUIPMENT：

Honed and chrome plated duo acting powerful cylinder

Hi-quality top and bottom blades. Bottom: 4/Top:2 cutting sides.

Patented easily clearance adjustment system from single point.

Excellent hydraulic system and pump.

Front Gauge. Manual back gauge with 685mm distance.

Hold-downs with rubber pads.

Toolbox

1 Foot Pedal available for single cutting.

Front support arms with ruler.

Finger Guards.

Electric motor.

Shoot Lubricant.

OPTIONAL EQUIPMENT：

DPC-410 NC controller, with LED readout.

NC controlled clearance adjustment system.

Thin sheet support system.

Finger protective light curtain.

Laser cutting line.

Oil coolant.

Longer front arms or front gauge..

Angular gauge (For angular cutting.)

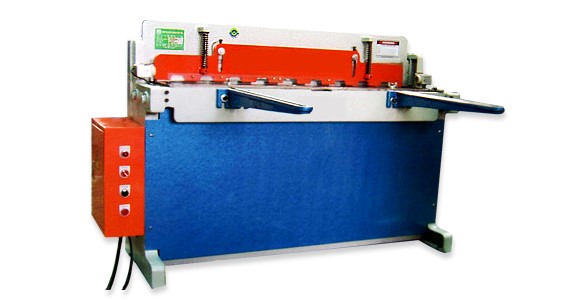

Hydraulic Shear Machine For Thinner Sheet

model\spec.

Capacity

back/front gauge

Stroke/min

motor

Approx. N.W.

Approx packing size
L*W*H

thickness*width

CFHS-312

2.5mm

914mm

685mm/
660mm

3HP

680 kgs

1970*1060*1500mm

CFHS-412

1320mm

740 kgs

1750*820*1220mm

CFHS-512

1530mm

800 kgs

1960*820*1220mm

CFHS-416

1.6mm

1320mm

2HP

530 kgs

1750*820*1220mm

CFHS-516

1530mm

590 kgs

1960*820*1220mm

CFHS-818

1.2mm

2500mm

3HP

900 kgs

2930*930*1280mm

CFHS-1018

3050mm

980 kgs

3480*960*1320mm

STANDARD EQUIPMENT：

Duo acting powerful cylinder with sealed lines.

Hi-quality top and bottom blades. Bottom: 4/Top:2 cutting sides.

1 Foot Pedal available for single cutting.

Excellent hydraulic system and pump.

Front Gauge. Manual back gauge with 685mm distance

Hold-downs with springs

Toolbox

Finger Guards

Front support arms.

Electric motor.

MACHINE CHRACTERISTIC :

HS series is designed for thinner plates. It’ll be your best and most economic choice.
Hydraulic drives, guillotine rack and oil tank are builded within the machine. Easy to use, easy to maintain.

HS series can be used for shearing PCB board, aluminum sheet and copper clad laminate, which
are used very often in electronic industry.

HS series can be placed in smaller space. It’s economic for large procurement
