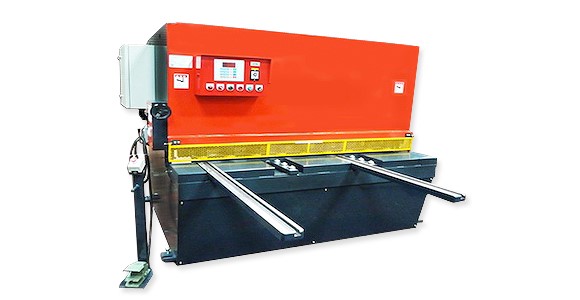

Hydraulic Swing Beam Shear Machine




CFS

model\spec.

Capacity
thickness*width

Shear
angle

back/front
gauge

throat depth / table height

Stroke/min.

motor

Approx packing size L*W*H

Approx.G.W

CFS-2545

4.5mm

2500mm

1°30’











800mm
1000mm











305mm
800mm

28

7.5HP

3100*1520*1540mm

4.5 Tons

CFS-3145

3100mm

22

10HP

3550*1520*1540mm

5 Tons

CFS-1565

6.5mm

1530mm

38

10HP

2650*2050*2700mm

4 Tons

CFS-2565

2500mm

24

10HP

3100*2050*2700mm

5.8 Tons

CFS-3165

3100mm

20

15HP

3650*2050*2700mm

7.8 Tons

CFS-3765

3700mm

16

20HP

4300*2050*2700mm

8.5 Tons

CFS-1510

10mm

1530mm

30

20HP

2650*2060*1800mm

4.6 Tons

CFS-2510

2500mm

20

20HP

3125*2060*1800mm

8 Tons

CFS-3110

3100mm

16

25HP

3680*2060*1800mm

9.5 Tons

CFS-3710

3700mm

13

30HP

4325*2060*1800mm

11 Tons

CFS-1512

12mm

1530mm

26

25HP

2715*2060*1900mm

6 Tons

CFS-2512

2500mm

16

30HP

3165*2060*1800mm

9 Tons

CFS-3112

3100mm

13

30HP

3710*2060*1950mm

10.5 Tons

CFS-3712

3700mm

2°

10

40HP

4325*2060*1950mm

15 Tons

CFS-1516

16mm

1530mm

20

30HP

2715*2060*1900mm

8.5 Tons

CFS-2516

2500mm

12

40HP

3165*2060*1900mm

14 Tons

CFS-3116

3100mm

10

40HP

3710*2060*1950mm

16 Tons

CFS-3716

3700mm

2°30’

8

60HP

4325*2060*1950mm

22 Tons

CFS-1520

20mm

1530mm

16

40HP

2715*2100*2000mm

10 Tons

CFS-2520

2500mm

10

60HP

3165*2100*2000mm

15 Tons

CFS-3120

3100mm

8

60HP

3710*2100*2000mm

19 Tons

CFS-3720

3700mm

6

60HP

4380*2100*2000mm

23 Tons

CFS-6120

6200mm

6

75HP

7200*2800*3150mm

32 Tons

STANDARD EQUIPMENT：
DPC-420 NC controller, with LED readout.
Honed and chrome plated duo acting powerful cylinder.
Hi-quality top and bottom blades. Bottom: 4/Top:2 cutting sides.
Easily adjustable clearance adjustment system from single point.
Excellent hydraulic system and pump.
Front Gauge. Swift and powerful back gauge with 800mm distance, moving by ballscrewed shafts,
    with auto swing-up feature.
Firm & independent hydraulic hold-downs with rubber pads to avoid sheet sliding during cutting action.
Toolbox.
1 Foot Pedal available for single cutting.
Finger Guards.
Cutting illumination.
Cutting length adjust device allowing stroke adjustment for shorter sheets & shorten the cutting time.
Front support arms with ruler and flip-stop.
OPTIONAL EQUIPMENT：
Laser cutting line
NC controlled clearance adjustment system
Thin sheet support system
Finger protective light curtain
Oil coolant
Longer front arms or front gauge.
Angular gauge (For angular cutting.)
