3-ROLL HYDRAULIC PLATE BENDING ROLLING MACHINE (SINGLE or DOUBLE PINCH Type)
CFRH
Model
Pre-bending
cap. mm
3*Top Roll mm
5*Top Roll mm
Top Roll mm
Motor HP
Shipping size
Approx. L*W*Hmm
G.W. KGS
CFRH-0404
4.5*1270
6.0*1270
8.0*1270
125
2
2700*1100*1400
1270
CFRH-0405
4.5*1550
6.0*1550
8.0*1550
145
3
2700*1100*1400
1400
CFRH-0604
4.5*2020
6.0*2020
8.0*2020
150
3
3200*1100*1500
2100
CFRH-0804
4.5*2500
6.0*2500
8.0*2500
160
3
3900*1100*1500
2600
CFRH-1004
4.5*3050
6.0*3050
8.0*3050
180
5
4500*1120*1600
3400
CFRH-0406
6.5*1270
8.0*1270
9.0*1270
155
3
2700*1100*1400
1300
CFRH-0506
6.5*1550
8.0*1550
9.0*1550
155
5
2700*1100*1400
1800
CFRH-0606
6.5*2020
8.0*2020
9.0*2020
205
5
3300*1100*1500
2500
CFRH-0806
6.5*2500
8.0*2500
9.0*2500
210
5
3900*1100*1500
3500
CFRH-1006
6.5*3050
8.0*3050
9.0*3050
230
7.5
4500*1100*1600
5000
CFRH-0408
8.0*1270
10*1270
12*1270
180
5
2700*1100*1460
1750
CFRH-0508
8.0*1550
10*1550
12*1550
185
5
2800*1100*1530
2350
CFRH-0608
8.0*2020
10*2020
12*2020
220
7.5
3300*1100*1530
3200
CFRH-0808
8.0*2500
10*2500
12*2500
230
7.5
3900*1100*1600
4500
CFRH-1008
8.0*3050
10*3050
12*3050
280
10
4600*1200*1600
7000
CFRH-0510
10*1550
12*1550
16*1550
245
7.5
2800*1200*1500
3500
CFRH-0610
10*2020
12*2020
16*2020
255
7.5
3300*1200*1500
4200
CFRH-0810
10*2500
12*2500
16*2500
280
10
4000*1200*1600
6700
CFRH-1010
10*3050
12*3050
16*3050
310
20
4700*1200*1650
8000
CFRH-0512
12*1550
16*1550
19*1550
275
7.5
3470*1220*1320
5000
CFRH-0612
12*2020
16*2020
19*2020
280
10
3970*1220*1320
7000
CFRH-0812
12*2500
16*2500
19*2500
310
25
4470*1220*1320
9800
CFRH-1012
12*3050
16*3050
19*3050
340
40
5920*1420*1750
13500
CFRH-1212
12*3660
16*3660
19*3660
370
60
6530*1420*1750
20000
Standard Equipment:
Motor & controls
Hydraulic control system
Remote control panel
Hardened steel roller
LCD position indicators
Optional Equipment:
Overhead support arm
Two-side support arms

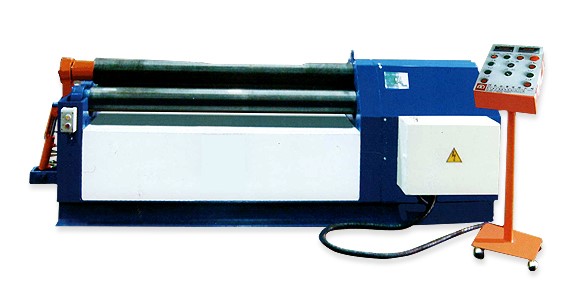

4-ROLL HYDRAULIC PLATE BENDING ROLL (Double Pinch Type)
RHF
Model
Pre-bending
cap. mm
3*Top Roll
ψmm
5*Top Roll
ψmm
Top Roll
mm
Motor
HP
Shipping size
Approx. L*W*Hmm
G.W. KGS
CFRHF-0406
6*1270
8*1270
9*1270
155
5
3440*1320*1500
1900
CFRHF-0506
6*1550
8*1550
9*1550
155
7½
3730*1320*1550
2800
CFRHF-0606
6*2020
8*2020
9*2020
205
7½
4050*1320*1550
3880
CFRHF-0806
6*2500
8*2500
9*2500
210
7½
4720*1320*1550
5300
CFRHF-1006
6*3100
8*3100
9*3100
230
7½
5370*1420*1600
7740
CFRHF-0508
8*1550
10*1550
12*1550
185
7½
3730*1320*1550
3420
CFRHF-0608
8*2020
10*2020
12*2020
220
7½
4039*1320*1549
6000
CFRHF-0808
8*2500
10*2500
12*2500
230
7½
4760*1420*1600
8400
CFRHF-1008
8*3100
10*3100
12*3100
280
10
5470*1500*1650
10300
CFRHF-0510
10*1550
12*1550
16*1550
245
7½
2800*1200*1500
5000
CFRHF-0610
10*2020
12*2020
16*2020
255
7½
4150*1420*1600
6100
CFRHF-0810
10*2500
12*2500
16*2500
280
10
4860*1500*1650
8500
CFRHF-1010
10*3050
12*3050
16*3050
310
25
5750*1580*1700
12000
CFRHF-0512
12*1550
16*1550
19*1550
275
7½
3470*1220*1320
6800
CFRHF-0612
12*2020
16*2020
19*2020
280
10
4200*1520*1600
8200
CFRHF-0812
12*2450
16*2450
19*2450
310
25
4960*1580*1700
11000
CFRHF-1012
12*3050
16*3050
19*3050
340
40
5944*1854*2134
17000
CFRHF-1212
12*3700
16*3700
19*3700
370
50
6750*2050*2450
24000
Standard Equipment:
Motor & controls
Hydraulic control system
Remote control panel
Hardened steel roller
LCD position indicators
Optional Equipment:
Overhead support arm
Two-side support arms

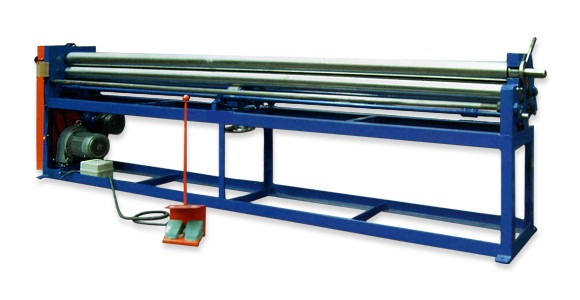

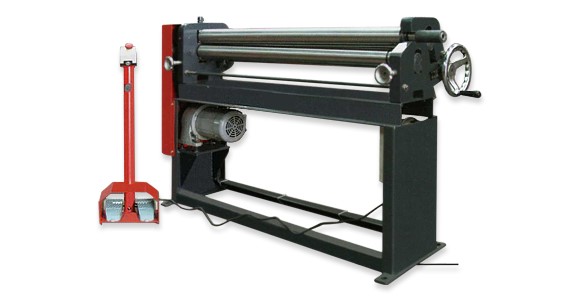

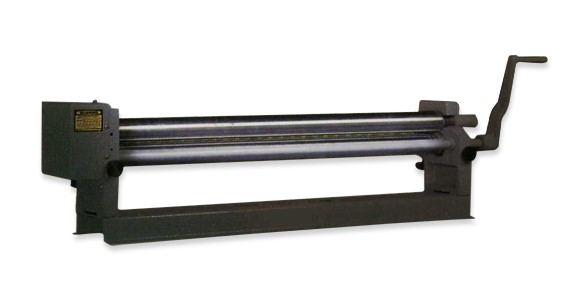

Power Slip Roll
CFSR
Model
SR-610/1.0P
SR-914/0.8P
SR-610/2.5P
SR-914/2.0P
SR-1270/1.6P
SR-1270/2.0P
SR-1270/3.2P
SR-1270/1.6
Width
610mm
914mm
610mm
914mm
1270mm
1270mm
1270mm
1270mm
Thickness
1.0mm
0.8mm
2.5mm
2.0mm
1.6mm
2.0mm
3.2mm
1.6mm
Rolls dia.
50mm
50mm
75mm
75mm
75mm
90mm
100mm
75mm
N.W./G.W.
70/95 kg
105/135 kg
140/170 kg
170/215 kg
300/470 kg
490/670 kg
660/860 kg
210/265 kg
Motor
1/4 HP
1/4 HP
1/2 HP
1/3 HP
1 HP
1 HP
3 HP
N/A
Speed
22RPM
By manual
Features:
The power slip rolls are ideal for the toolroom, sheet metal shop, & school training programs.
Simple to adjust & operate, they are manufactured with many exceptional features including rolls, accurate circle settings, and wire grooves.
Work rolls of carbon steel, precision turned & ground to high finish.
All gears fully enclosed in housings steel channel base. Upper roll lifted thru camlever for ample clearance & removal of full length work piece. SRP machine regularly furnished for bench mounting, two rolls driven.
