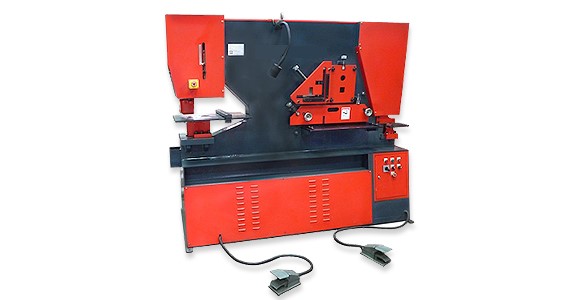

Hydraulic Ironworker
(Single Hydraulic Cylinder Type)

CFHIW

Specifications＼Model No.

CFHIW-4030

CFHIW-5050

CFHIW-6050

CFHIW-8050

Standard Device

Plate or flat bar shearing

4.5*350mm or 12*150mm

13*355mm or 16*305mm

15*350mm or 20*210mm

12*500mm or 19*305mm

Angle Iron shear degree 90°
Angle Iron shear degree 45°

75*75*8mm
57*57*8mm

100*100*10mm
64*64*9mm

100*100*13mm
80*80*8mm

150*150*12mm
92*92*12mm

Punch pressure

40 tons

55 tons

65 tons

85 tons

Strokes Q'ty at 12mm per minute

Strokes Q'ty at full stroke per minute

Max. diameter

Max. thickness

ψ32mm
10mm

ψ32mm
15mm

ψ32mm
17mm

ψ32mm
20mm

Round/Square bar shear

ψ28mm
25*25mm

ψ32mm
28*28mm

ψ32mm
30*30mm

ψ50mm
38*38mm

Optional Device

Rectangular notching tool thickness*width*depth

6*32*72mm

8*50*90mm

10*55*90mm

12*70*100mm

Vee notcher. *thickness*side*side

6*72*72mm

10*75*75mm

10*90*90mm

12*70*100mm

Channel shear*

Not supported

100mm

125mm

Press Brake tool*

180*6mm

250*8mm

250*10mm

250*12mm

GENERAL SPECIFICATIONS

Depth of throat

150mm

270mm

280mm

305mm

Motor
(voltage:220/380/415/440/575)

5 HP (50 Hz)

7.5 HP (50 Hz)

10 HP (50 Hz)

Net weight of machine(Apr.)

482 kg

960 kg

1120 kg

2025 kg

Gross weight of machine(Apr.)

570 kg

1058 kg

1570 kg

2330 kg

Size of machines L*W*H

1230*690*1400mm

1320*750*1480mm

1450*780*1560mm

1830*980*1730mm

Size of Case L*W*H

1330*780*1600mm

1420*840*1680mm

1550*870*1760mm

1930*1070*1930mm

STANDARD EQUIPMENT：

Flat shear blade.

Angles shear blade.

Bar share blade.

Cope-Notcher blade.

Round punch & Die (1” hole through 1/8”).

Manual position fixed stroke control.

Two actions (JOG/AUTO) Pedal foot-switch control

Service tools.

Operation & instruction manual.

OPTIONAL EQUIPMENT：

Channel shear.

Triangular notching.

Press brake tool.

Pipe notcher.

H-beam shear.

Customized Punches & Dies for Round/Rectangle/Hexagon/Oval/Square and others or your specify.

Hydraulic Ironworker
(Double Hydraulic Cylinders Type)

CFHIW

Specifications＼Model No.

CFHIW-6050S/D

CFHIW-8050S/D

CFHIW-1000S/D

CFHIW-1250S/D

Standard Device

Plate or flat bar shearing

350*15mm
240*20mm

Angle Iron shear degree 90°
Angle Iron shear degree 45°

130*13mm
80*10mm

150*12mm
90*12mm

150*18mm
90*12mm

Round/Square bar shear

ψ40 / 38*38mm

ψ45 / 45*45mm

ψ50 / 45*45mm

ψ55/ 55*55 mm

Punch pressure

60 tons

85 tons

100 tons

125 tons

Stroke Distance

100mm

Strokes Q'ty at 15mm per minute

Max. diameter

Max. thickness

ψ22mm
20mm

ψ32mm
20mm

ψ57mm
16mm

Optional Device: Rectangular notching tool thickness*width*depth

9*70*75mm

10*75*100mm

12*75*100mm

13*75*100mm

Optional Device

Channel shear*

125*50mm

150*75mm

180*75mm

Vee notcher. *thickness*side*side

100*100*8mm

100*100*10mm

100*100*13mm

Press Brake tool*

250*10mm

250*12mm

250*15mm

250*20mm

GENERAL SPECIFICATIONS

Standard Throat Depth (S)

Deep Throat Depth (D)

310mm
510mm

310mm
625mm

Motor (voltage:
220/380/415/440/575)

7.5 HP

10 HP

15 HP

Net weight of machine(About) S
D

1600 kg
2000 kg

2100 kg
2570 kg

3100 kg
3710 kg

Gross weight of machine(About) S
D

1720 kg
2120 kg

2250 kg
2720 kg

3370 kg
4000 kg

Size of machines
L*W*H S for Standard throat model
L*W*H D for Deep throat model

1760*750*1700mm
2130*750*1700mm

1890*810*1800mm
2270*810*1800mm

2060*820*1750mm
2420*820*1750mm

2190*800*2030mm
2540*800*2030mm

Package Size
L*W*H S for Standard throat model
L*W*H D for Deep throat model

1910*840*1900mm
2280*840*1900mm

2040*900*2000mm
2420*900*2000mm

2110*910*1950mm
2470*910*1950mm

2340*900*2230mm
2690*900*2230mm

STANDARD EQUIPMENT：

Flat shear blade

Angles shear blade

Round punch & Die (3~25mm)

Manual position fixed stroke control

Two actions (JOG/AUTO) Pedal foot-switch control

Service tools

Operation & instruction manual

OPTIONAL EQUIPMENT：

Triangular notching

Press brake tool

Pipe notcher

Round/Square bar notcher

Channel shear/H-beam shear

Customized Punches & Dies for Round/Rectangle/Hexagon/Oval/Square and others or your specify
